Adder High Performance Martix KVM
Adding multiple transmitters, multiple receivers and an ADDERLink INFINITY Manager to a network creates a KVM matrix.
ADDERLink® INFINITY 2102
Dual-head digital video, audio, and USB2.0 over 1GbE IP network.
ADDERLink® INFINITY 2102
DisplayPort™ connectivity
Resolution: up to 2560 x1600@60Hz
Number of screens: Up to 2
Product code(s): ALIF2102T, ALIF2102R
Datasheet:

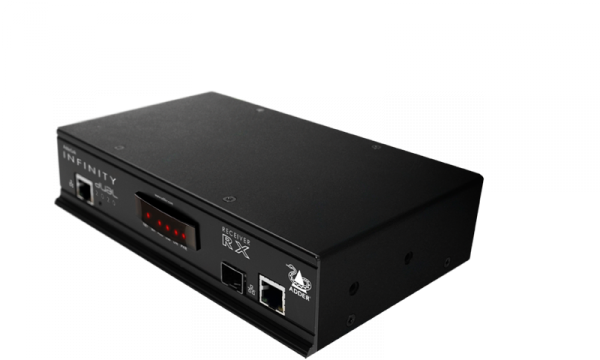

ADDERLink™ INFINITY Dual 2020
A single link, dual head digital video and USB fanless KVM extender that runs over a single cable on your standard IP network
Ext Distance: Unlimited over IP/100m over CATx/10km over fiber
Resolution: Up to 1920x1200@60Hz
Number of Screens: Up to 2
Datasheet:

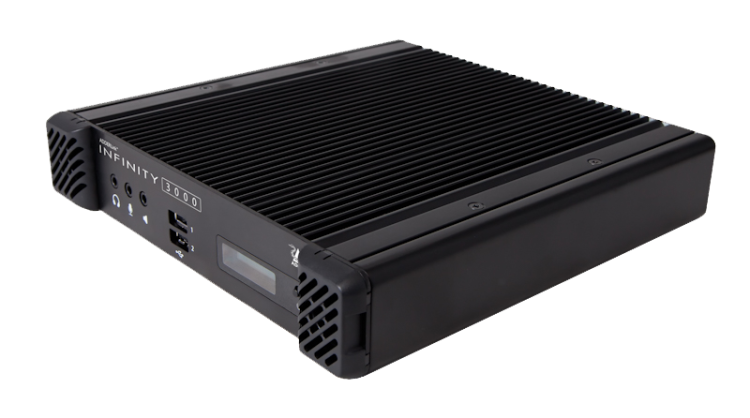

ADDERLink™ INFINITY 3000
The ADDERLink™ INFINITY 3000 (ALIF3000) delivers real-time access to unlimited physical and virtual machines (VM) from a single human-machine interface (HMI)
- Ext Distance: Unlimited over IP/100m over CATx/10km over fiber
Resolution: Up to 2560x1600@60Hz
Number of Screens: Up to 2
Product code(s): ALIF3000R
Datasheet:

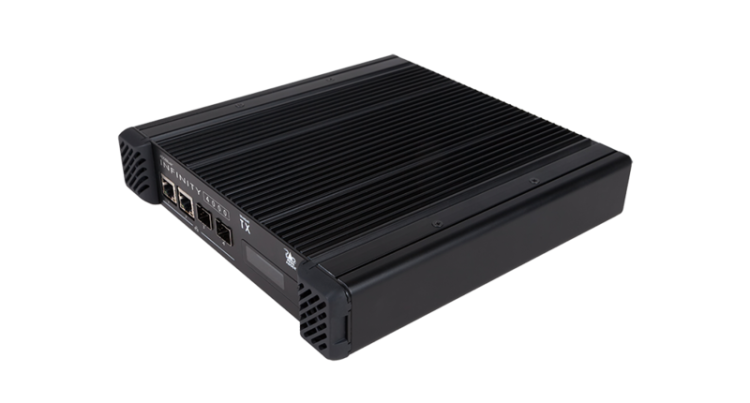

The ADDERLink™ INFINITY 4000 (ALIF4000) is the world’s first dual-head, 5K high performance IP KVM matrix over a single fiber.
Ext Distance: Unlimited over IP/100m over CATx/10km over fiber
Number of Screens: Up to 2
Resolutions: Supports resolutions up to 5120x2880 (5K) including UHD or DCI
Product code(s): ALIF4021T, ALIF4021R
Datasheet:

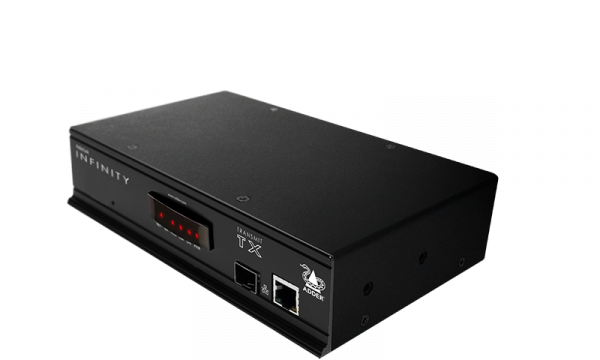

ADDERLink™ INFINITY 1002
A single link, single head digital video and USB2.0 fanless KVM extender that runs over a single cable using your standard IP network
ADDERLink™ INFINITY 1002
Ext Distance: Unlimited over IP/100m over CATx/10km over fiber
Video Resolution: Up to 1920x1200@60Hz
Number of Screens: 1
Product code(s): ALIF1002P, ALIF1002T, ALIF1002R
Datasheet:

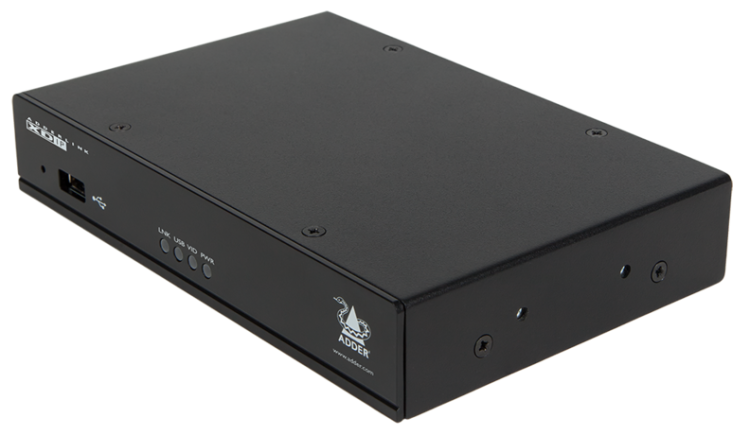

ADDERLink™ XDIP
High Performance IP KVM Extender or matrix solution with video distribution functionality.
- Powerful KVM extender with KVM matrix functionality
- Configurable as a point to point extender or small matrix solution
- A single unit can be programmed as transmitter or receiver
- Remote control via RESTful API or HTTPS web browser
- Support for Power over Ethernet (PoE)
- Local USB and video feed through ports
Datasheet:
Adder High Performance KVM Extenders
Access centralized computers from anywhere, without compromising image quality or performance.

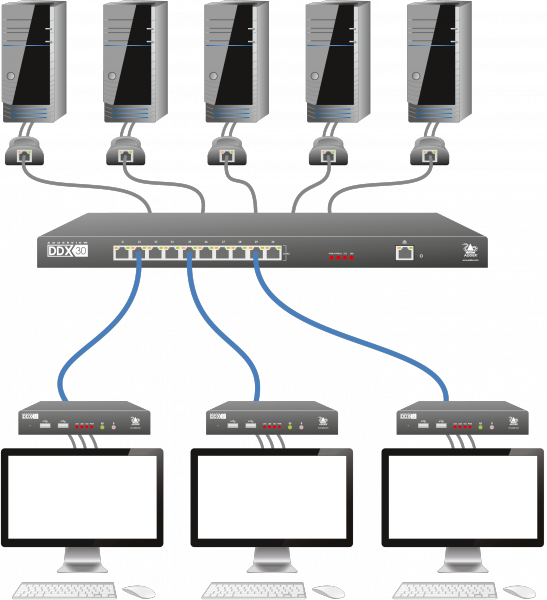

ADDERView™ DDX30
Flexible 30-port KVM matrix switch for DVI/DisplayPort/VGA, USB and audio. Combined with the DDX CAM and DDX USR, the DDX30 forms the basis a KVM Matrix
Flexible 30 port KVM matrix switch
7 fixed user ports and 23 configurable flexi-ports
Resolution: Up to 1920x1200@60Hz
Product code(s): DDX30
Datasheet:

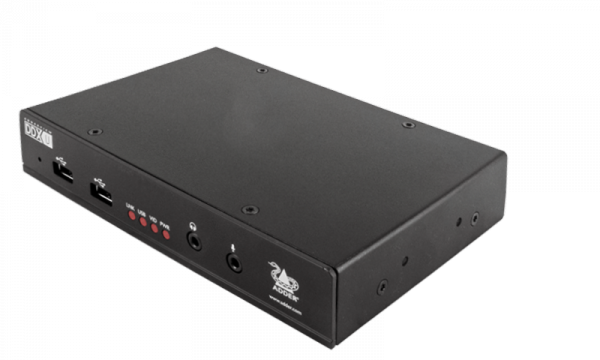

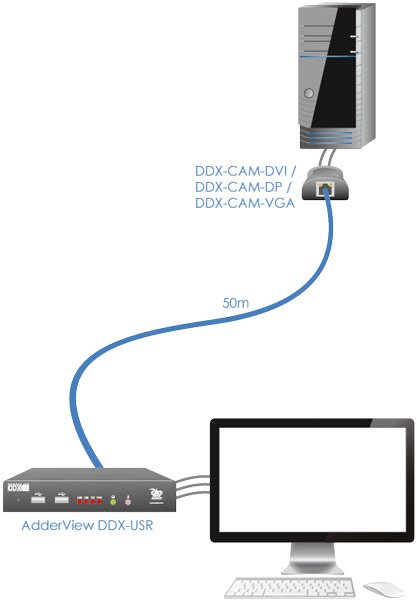

ADDERView™ DDX USR
User station for the DDX range
Extension Distance: Up to 50m over CATx cable
Resolution: Up to 1920x1200@60Hz
USB-powered computer module
Product code(s): DDX-USR
Datasheet:

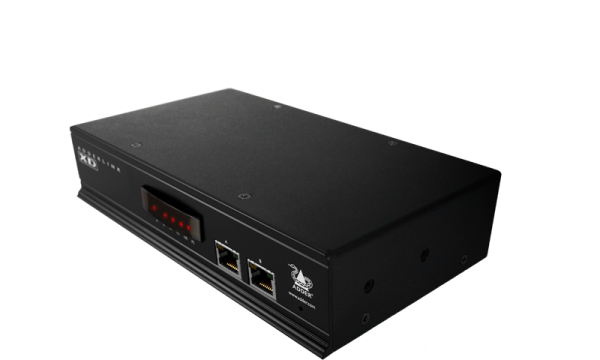

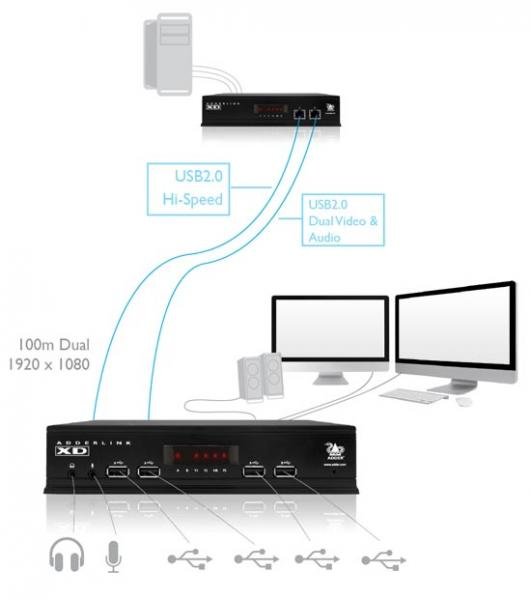

ADDERLink™ XD522
Ext. Distance: Up to 150m
Resolution: Up to 3840x2160@30Hz
Number of Screens: Up to 2
Product code(s): XD-522-DP-PAIR
Datasheet:

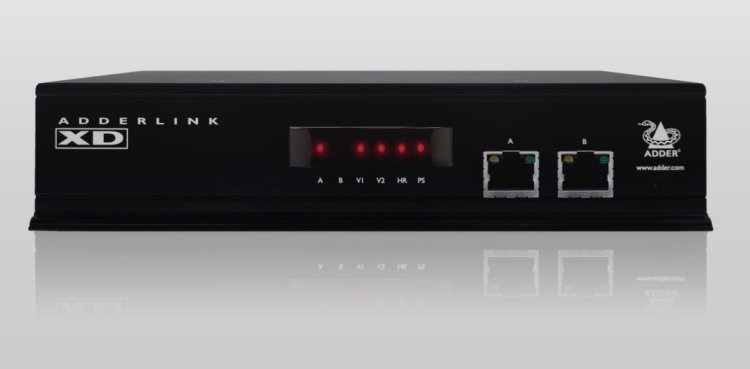

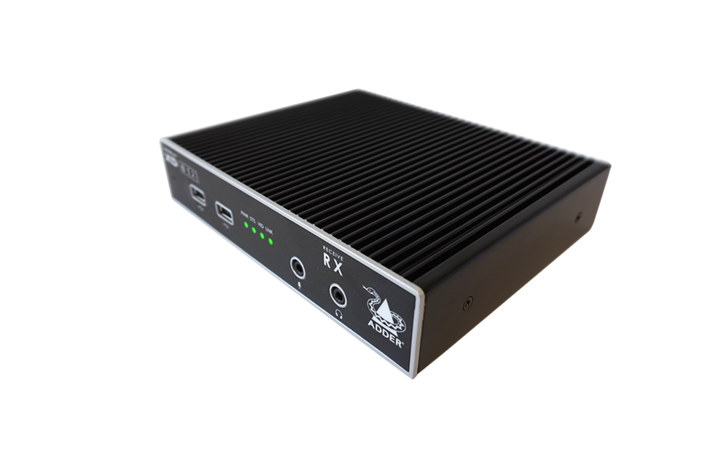

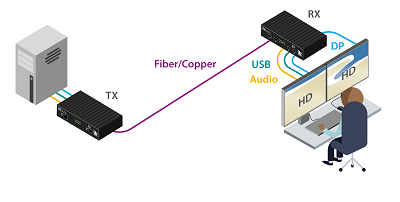

ADDERLink™ XD612
A high resolution single or dual-head KVM extender. High definition video, USB2.0 and audio are transmitted on a single CATx or fiber cable.
Single or dual-head HD 60 video, USB2.0 (HID) and audio are transmitted on a single CATx or fiber cable.
Purpose-built, point-to-point KVM extender.
Flexibility between copper and fiber connectivity.
Product code(s): XD612P-DP
Datasheet:

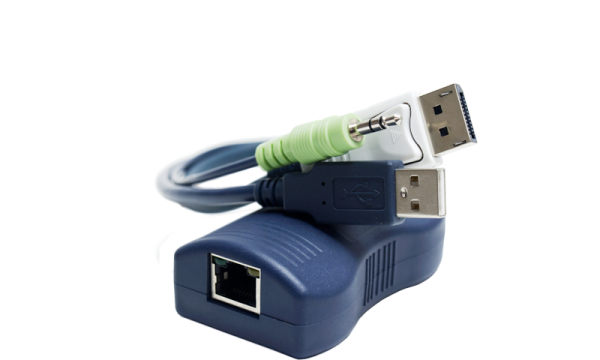

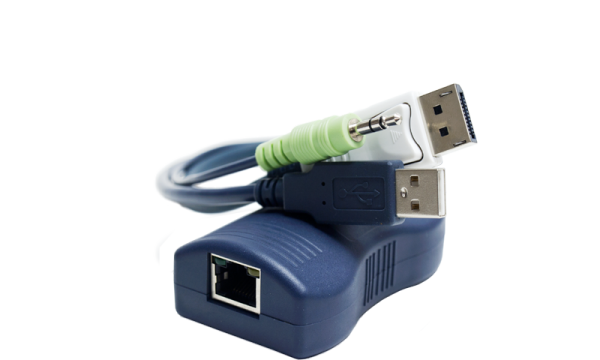

ADDER CATx DisplayPort CAM
Ext. DP equipped computers using CATx up to 300m
Resolution: Up to 1920x1200@60Hz
Compatible with ADDERview CATx KVM switches or ADDERLink X100 or X200
Product code(s): CATX-DP-USBA, CATX-MDP-USBA
Datasheet:

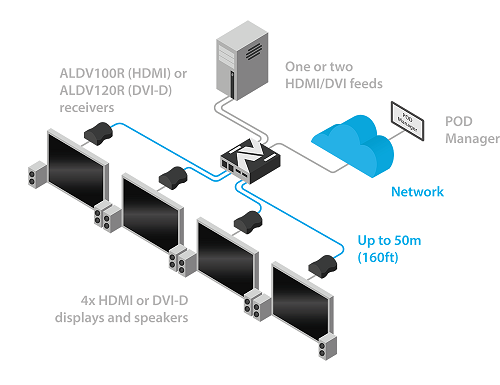

ADDERLink™ DV104T
High performance digital video extender and splitter
• 50 meter extension distance
• Plug and Play
• Two video input, four video output
• 2x4 HD Digital matrix
• Line powered receivers
Proof of Display (P.O.D.)
Datasheet:
DVI and VGA Extenders
DVI KVM extenders allow IT teams to extend and distribute control of any DVI display from an optimized server room directly to the user’s workstation – lengthening the operational lifespan of IT resources while improving desktop ergonomics.

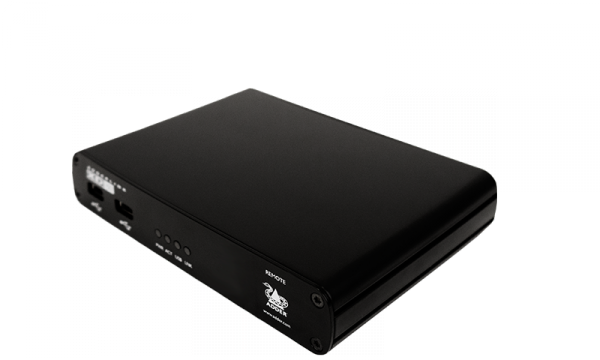

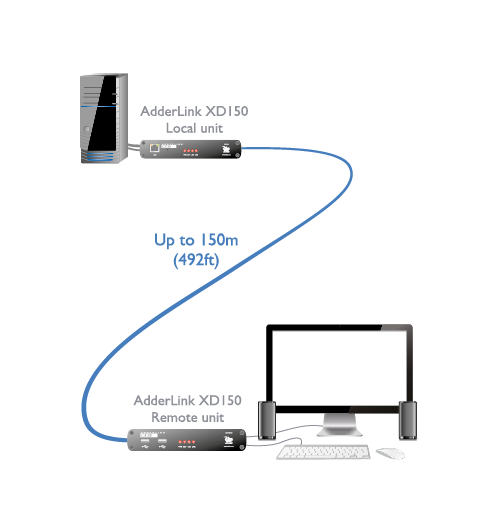

ADDERLink™ XD150
The ADDERLink XD150 DVI video extender transmits high resolution video, USB 2.0 and audio signals within a small, fanless form factor
Ext. Distance: Up to 150m
Resolution: Up to 1920x1200@60Hz
Number of Screens: 1
Datasheet:

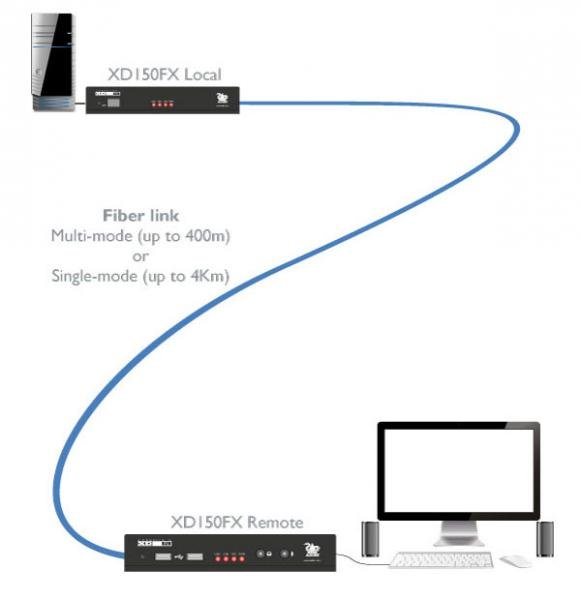

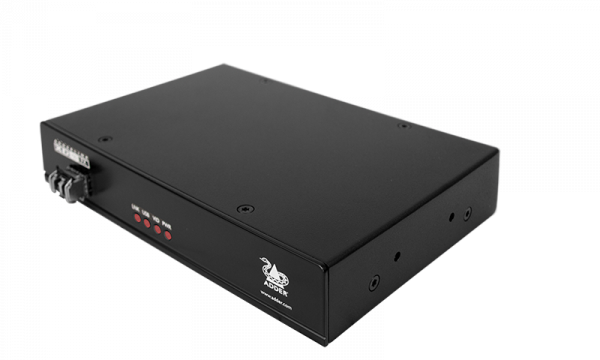

ADDERLink™ XD150FX
A high-performance KVM transmitter producing high-resolution video, USB 2.0 and audio signals up to 4km (2.5miles)
Ext. Distance: Up to 4km
Resolution: Up to 2560x1600@60Hz
Number of Screens: 1
Product code(s): XD150FX-MM, XD150FX-SM
Datasheet:

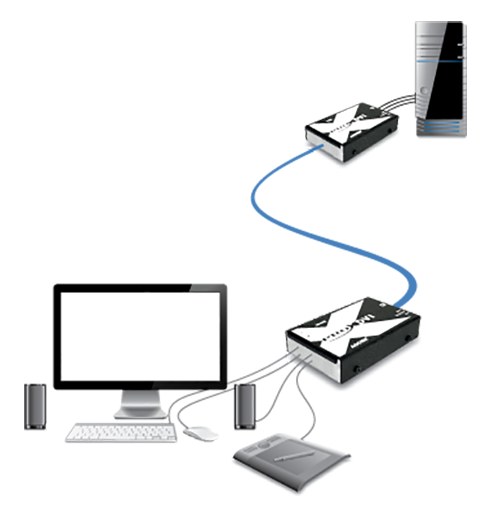

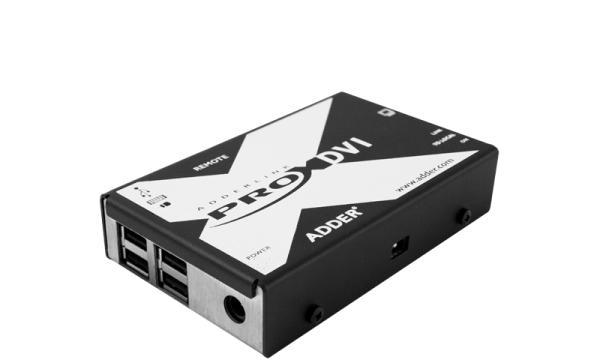

ADDERLink X-DVI PRO
The ADDERLink X-DVI PRO high performance KVM extender delivers uncompressed video signals up to 50m in real-time
- Delivers uncompressed digital video with audio
- USB 2.0 Low and Full speed connection: to interface with a range of devices
- Exact content seen on the local monitor is distributed: up to 50m over a single CATx cable
- Energy efficient design: external power supplies are not needed
Datasheet:

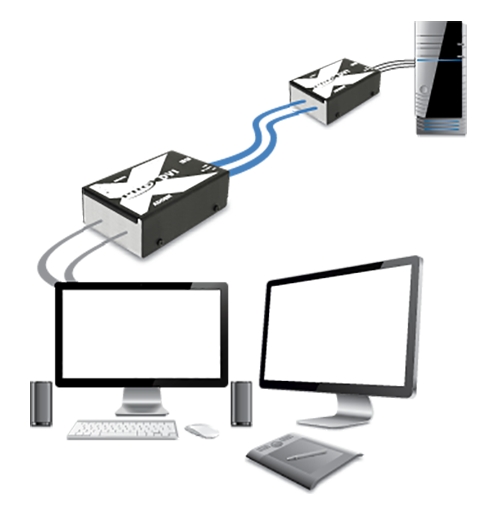

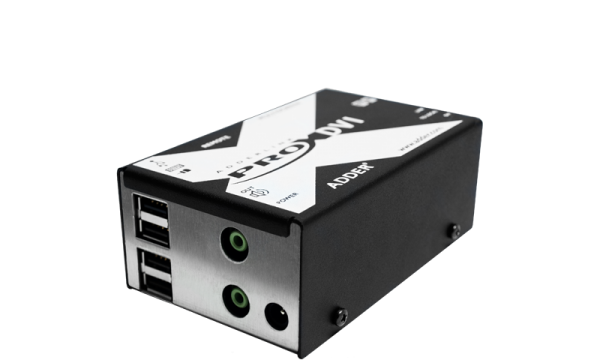

ADDERLink X-DVI PRO-MS
The ADDERLink X-DVI PRO-MS Dual Head extender distributes uncompressed digital video with audio over twin cables to multiple screens up to 50m away, with USB 2.0 connection to interface with a range of devices
Resolution: Up to 1920x1200@60Hz
Number of Screens: Up to 2
Product code(s): X-DVIPRO-MS2
Datasheet:

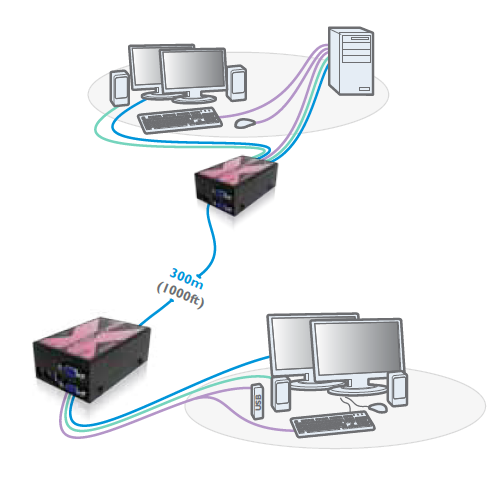

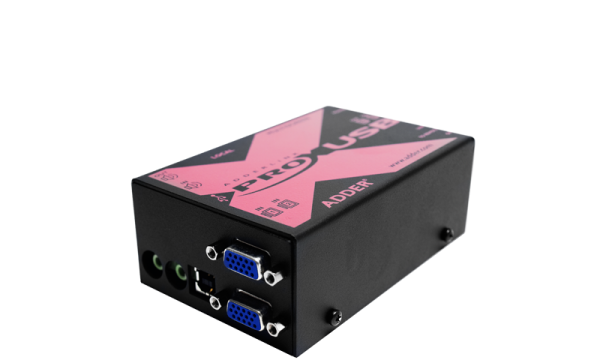

ADDERLink X-USB PRO MS
Ext. Distance: Up to 300m over single CATx cable
Resolution: Up to 1920x1200@60Hz
Number of Screens: Up to 2
Product code(s): X-USBPRO-MS2
Datasheet:

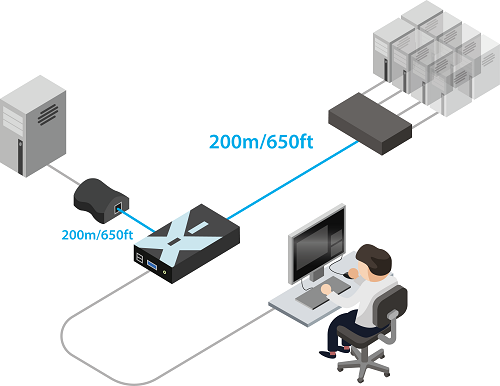

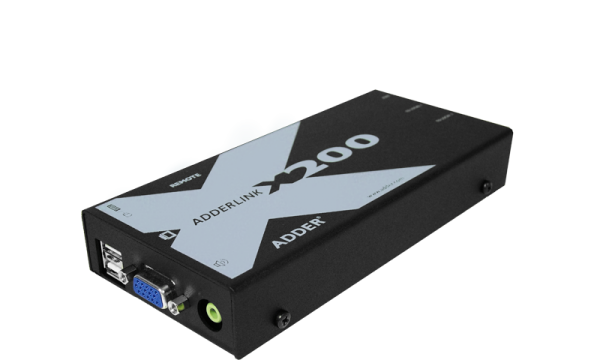

ADDERLink X200
Fully featured USB keyboard, video and mouse extender with 44.1kHz digital stereo audio support for two computers
Ext. Distance: Up to 200m over CAT5 or higher UTP cable
Resolution: Up to 1600x1200
Number of Computers: Up to 2
Product code(s): X200/R; X200A/R; X200AS/R; X200-USB/P; X200A-USB/P; X200AS-USB/P
Datasheet:
Adder High Performance Desktop KVM switches

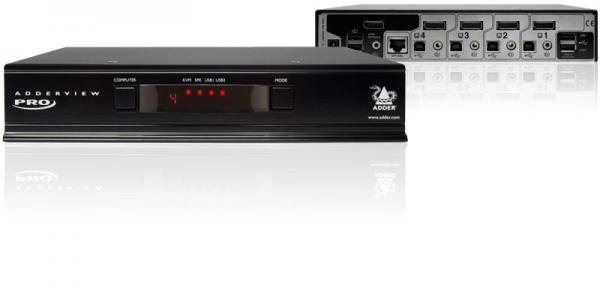

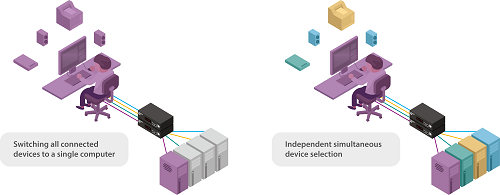

ADDERView 4 PRO DisplayPort
Shares digital video and USB between up to 4 computers through a DisplayPort connector
Resolution: Up to 2560x1600@60Hz
Number of Screens: 1
Datasheet:

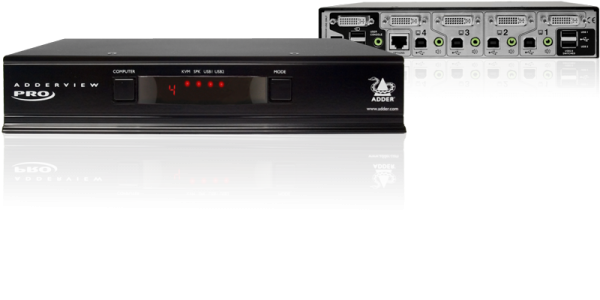

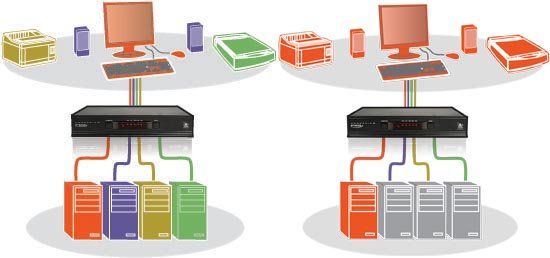

ADDERView® 4 PRO DVI
Shares digital video and USB between up to 4 computers through a DVI connector
Resolution: Up to 4096x2160
Number of Screens: Up to 4
Datasheet:

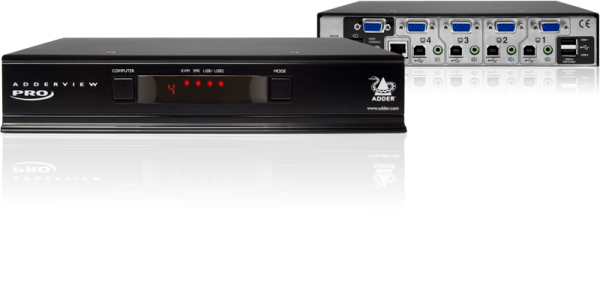

ADDERView 4 PRO VGA
Shares digital video and USB between up to 4 multi-head computers through a VGA connector
Resolution: Up to 1920x1440@60Hz
Number of Screens: Up to 4
Datasheet:

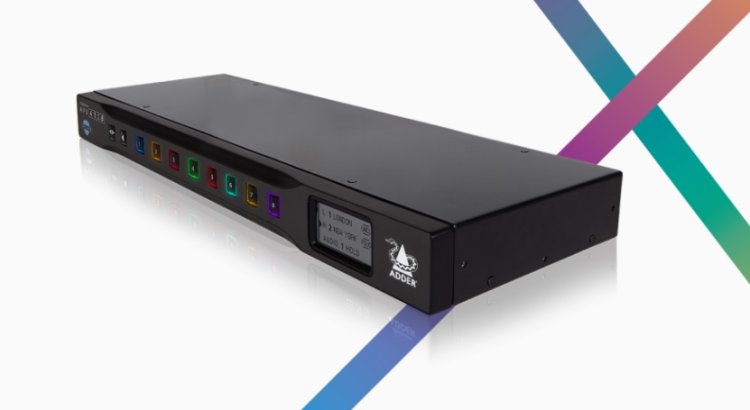

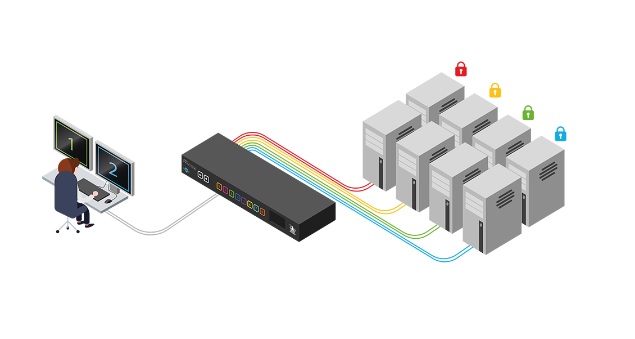

ADDERView® AVS 4128
Secure KVM flexi-switch for sharing single or dual head 4K video, USB keyboard and mouse, plus analog audio between eight computers spanning multiple security classification levels.
Datasheet:

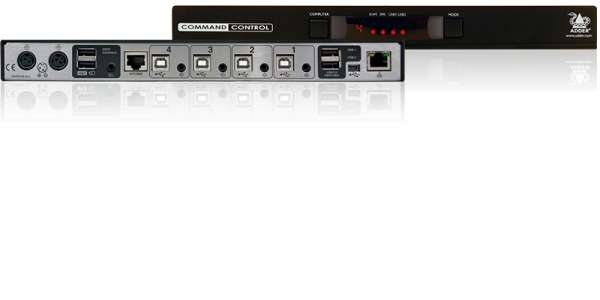

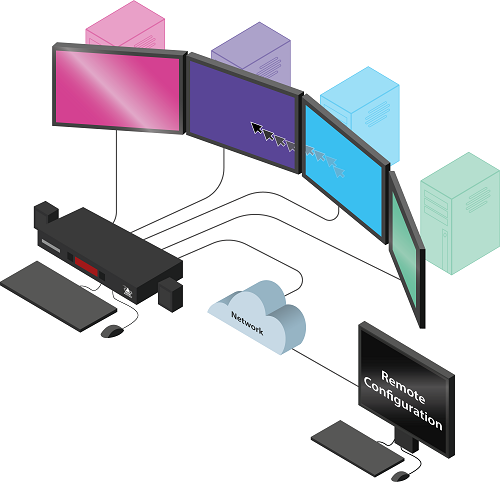

ADDER CCS-PRO4
Users: 1
Number of Devices: Up to 4
Adder Free-Flow Technology
Seamless switching between multiple computers
Manage multiple computers, and multiple monitors with a single keyboard and mouse
No software installation required for single screen computers
Improved desk ergonomics
Copy and paste text between Windows computers
Datasheet:'

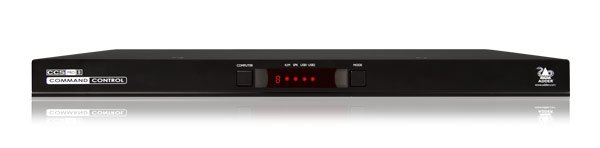

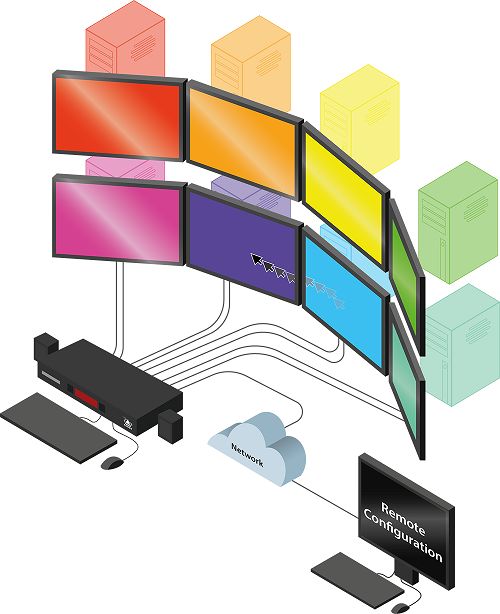

ADDER CCS-PRO8
Users: 1
Number of Devices: Up to 8
Adder Free-Flow Technology
Datasheet:
Remote Access Switches
ADDERView® CATxIP 4000
Control up to 24 computers
Supports up to 4 local, remote and global users
Resolutions up to 1920 x 1200 @ 60Hz resolutions with Display Data Channel (DDC) emulation. Remote link resolutions up to 1600 x 1200.
Datasheet:

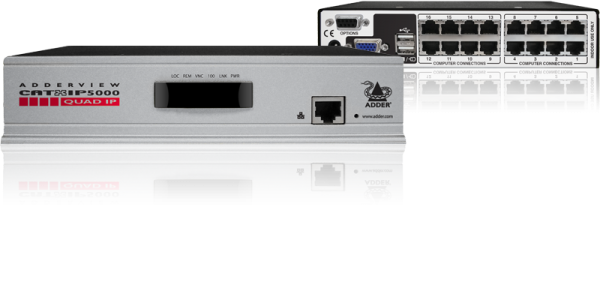

ADDERView™ CATxIP 5000
Users: Up to 5 (4 via IP, 1 direct connect)
Number of Devices: Up to 16
Resolution: Up to 1600x1200@60Hz

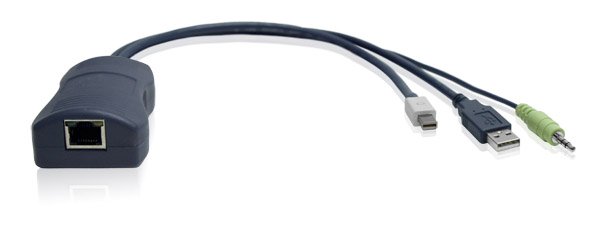

ADDER CATx DisplayPort CAM
Ext. DP equipped computers using CATx up to 300m
Resolution: Up to 1920x1200@60Hz
Compatible with ADDERview CATx KVM switches or ADDERLink X100 or X200
Datasheet:
KVM Switches and Trays

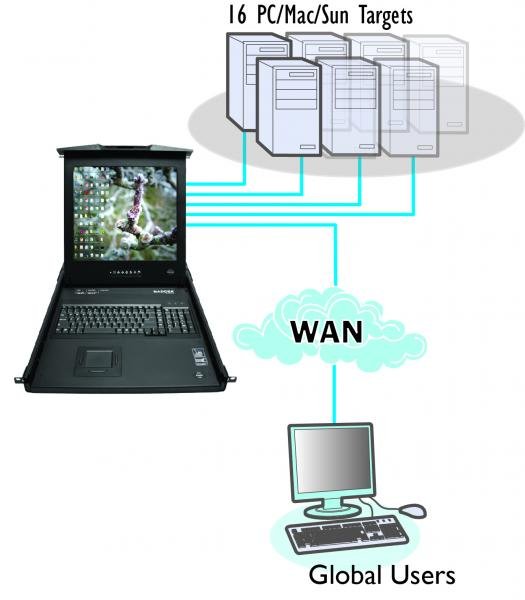

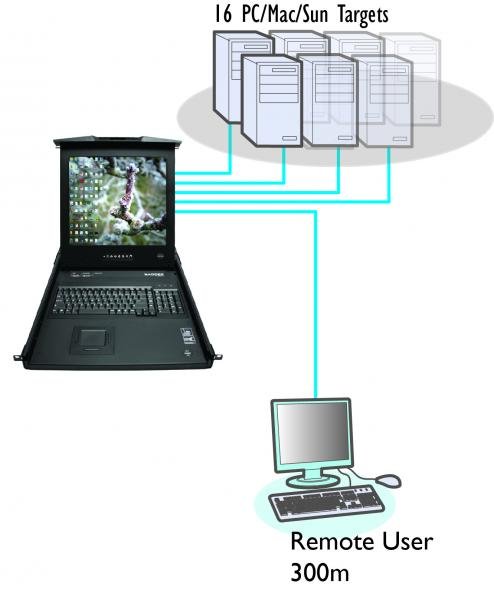

ADDERView® RDX 1000
1U keyboard tray
Control 16 computers directly from tray with a remote user via CATx
Expand to support up to 256 computers using CATx 1000 switches
Datasheet:
ADDERView® RDX 1000IP
High-density rack tray
Control 16 computers directly from tray or remotely via IP
Expand to support up to 256 computers using CATx 1000 switches
Datasheet:

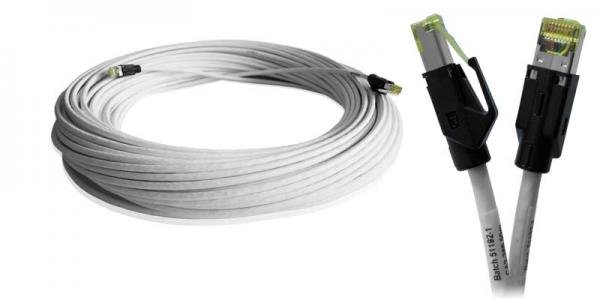

ADDER VSCAT7-50 Cable
Daetwyler CAT7 50m shielded cable suitable for use with the ADDERLink X-DVI PRO and X-DVI PRO MS.

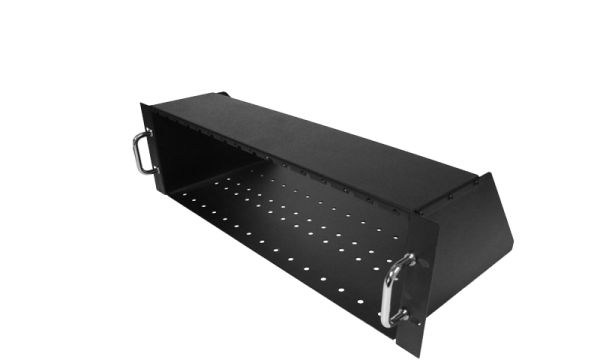

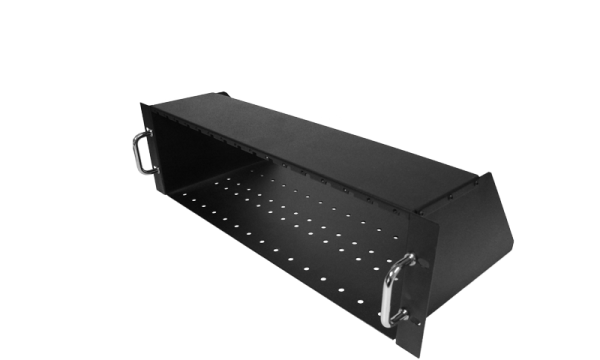

ADDER Rackmount Kit X-RMK-CHASSIS
Rackmount chassis kit for ADDERLink™ X Series and ADDERLink ipeps
ADDER rackmount products are designed to enable easy installation within the rack environment.
X-RMK-CHASSIS - 19" 2U rackmount chassis kit for ADDERLink X Series and ADDERLink ipeps.
X-RMK-CHASSIS holds 16 x X50 units or 8 x X50-MS2 units.
